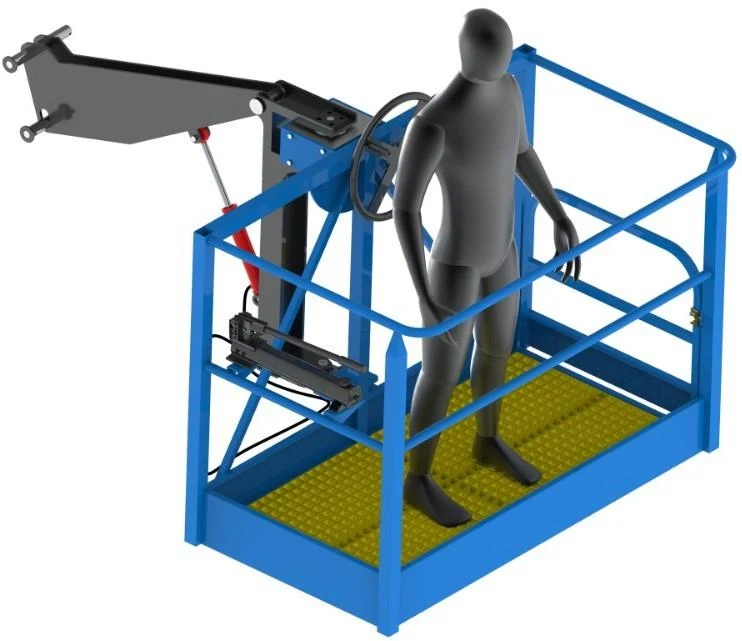

Upgrade your Hydra to a Boom Lift. The Elev8 Articulating Man Carry Basket turns a compatible Hydra crane into a safe man-lifting boom lift, with pitch and yaw control of the basket.
First time in India. Made in India by Elev8 Lifts, Rajkot. Compatible with ACE, ESCORTS, INDO-FARM and FRANNA cranes.

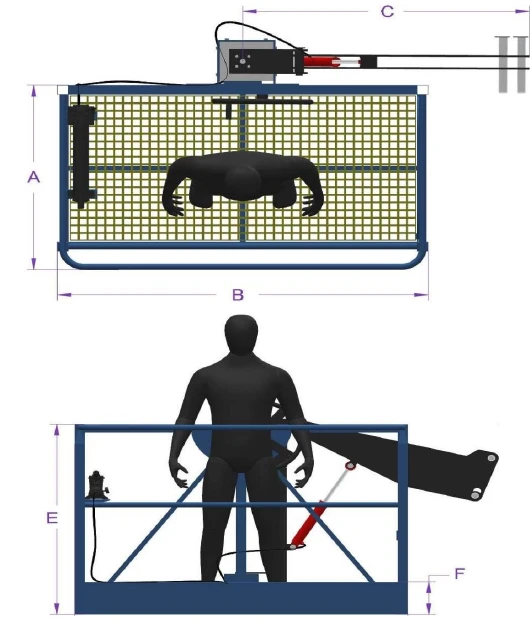

| Specification | MCB 2225 | MCB 2525 |
|---|---|---|
| Basket width (A) | 0.98 m | |
| Basket length (B) | 0.88 m | 1.64 m |
| Basket height (E) | 1.17 m | |
| Skirting height (F) | 0.20 m | |
| Jib length (C) | 1.29 m | |
| Basket unladen weight | ~200 kg | ~230 kg |
| Pitch control range | -60° to 0° | |
| Yaw control range | -180° to +180° | |
| Crane compatibility | ACE, ESCORTS, INDO-FARM, FRANNA | |
* We strive to constantly improve our products and thus all above specifications are subject to change without prior notice.
Convert a Hydra crane into a boom lift for safe work at height.
-60° to 0° pitch control range for easy positioning.
Full -180° to +180° yaw control range.
MCB 2225 (0.88 m basket length) and MCB 2525 (1.64 m basket length), both 0.98 m wide.
ACE, ESCORTS, INDO-FARM and FRANNA cranes.
First time in India, designed and manufactured by Elev8 Lifts, Rajkot.
Contact Paresh Bhammar for MCB 2225 and MCB 2525 pricing, crane compatibility and delivery.
